ball valve

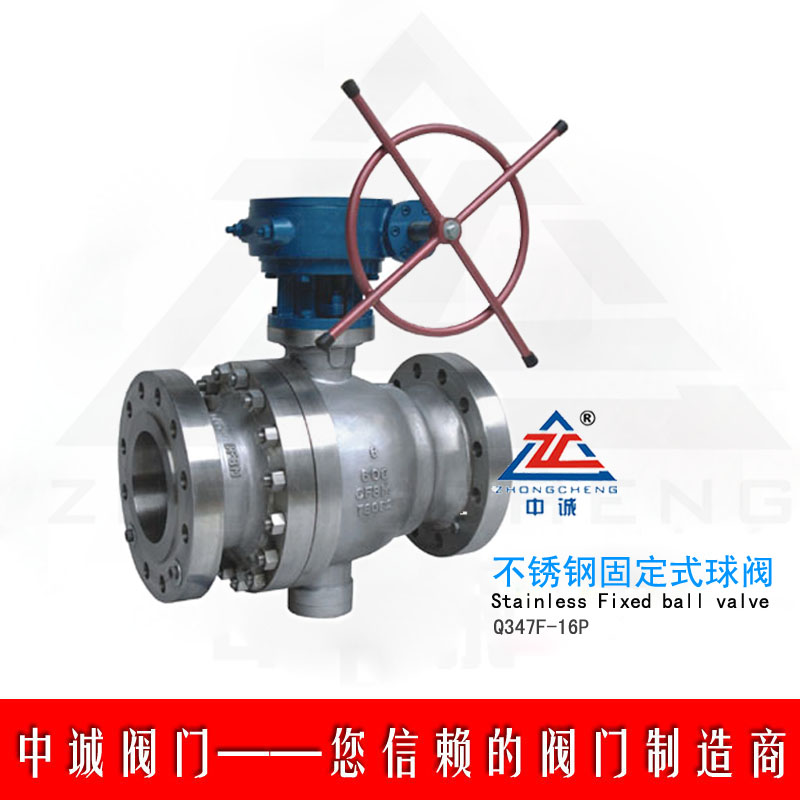

Q47 type fixed ball valve is a new generation of high-performance ball valve, suitable for long distance pipeline and general industrial pipeline, its strength, security, and resistance to bad environment, special consideration when the design is suitable for all kinds of corrosive and non corrosive medium.Compared with the floating ball valve, it works, the fluid pressure in front of the sphere of all is passed to the bearing force, will not make a sphere to the seat to move, so the seat will not bear too much pressure, so the fixed ball valve torque is small, the seat of the small deformation, stable sealing performance, long service life, applicable to high pressure, large diameter.Advanced spring seat components, since the tight characteristics, realize the upstream sealing.Each valve has two seats, each direction can be sealed, and therefore there is no flow restriction, installation is two-way.

This valve has two and three type two kinds of body structure, the flange bolting, seal enhanced ptfe inserted into the stainless steel ring, steel ring at the back of the seat close to the ball, no spring guarantee seal.Up and down the stem are no PTFE bearing, reduce friction, easy operation, small no TAB at the bottom of the shaft, to ensure that the ball and seal it.All sizes available: valve flow aperture is consistent with the pipeline diameter, so that pipeline cleaning.

Q47H type fixed ball valve product features

1, using cylindrical spring or waveform spring preload Lian metal valve seat structure, sealing design reasonable pretightening, closed and flexible, effectively guarantee the reliability of the seal.
2, the use of special structure device of the valve stem, leakage will not only make sure to fill in material, and prevent the stem out.
3, according to the needs of users, can be designed to adapt to the dust, including containing solid particles, the structure of the serous luid etc, make the valve wear resistant and high temperature resistant performance is better.
4, itself with fire retardant anti-static function.
5, the structure of ball valve shall be in accordance with the provisions, to use.

Q47 type fixed ball valve mainly contour connection size:

1.6MPa	DN	L	D	D1	D2	b	n-φd	H0	H1	H2
RF Q47H 16C 16P 16R	32	140	135	100	78	16	4-18	30	85	160
	40	165	145	110	85	16	4-18	32	95	230
	50	178	160	125	100	16	4-18	43	107	230
	65	190	180	145	120	18	4-18	70	142	400
	80	203	195	160	135	20	8-18	110	152	400
	100	305	215	180	155	20	8-18	150	178	500
	125	356	245	210	185	22	8-18	200	252	500
	150	394	280	240	210	24	8-23	230	278	600
	200	457	335	295	265	26	12-23	260	395	600
	250	533	405	355	320	30	12-25	283	480	800
	300	610	460	410	375	30	12-25	380	585	800
	350	686	520	470	435	34	16-25	42	625	800
	400	762	580	525	485	36	16-30	492	720	800
	500	914	705	650	608	44	20-34	555	840	830
	600	1067	840	770	718	48	20-41	675	1050	830
	700	1245	910	940	788	50	24-41	850	1150	830

Size Main Dimensions

2.5MPa	DN	L	D	D1	D2	b	n-φd	H0	H1	H2
RF Q47H 25 25P 25R	32	180	135	100	78	18	4-18	30	85	160
	40	190	145	110	85	18	4-18	32	95	230
	50	216	160	125	100	20	4-18	43	107	230
	65	241	180	145	120	22	8-18	70	142	400
	80	28	195	160	135	22	8-18	110	152	400
	100	305	230	190	160	24	8-23	150	178	500
	125	381	270	220	188	28	8-25	200	252	500
	150	403	300	250	218	30	8-25	230	278	600
	200	502	360	310	278	34	12-25	260	395	600
	250	568	425	370	332	36	12-30	283	480	800
	300	648	485	430	390	40	16-30	380	585	800
	350	762	550	490	448	44	16-34	425	625	800
	400	838	610	550	505	48	16-34	492	720	800
	500	991	730	660	610	52	20-41	555	840	830
	600	1143	840	770	718	56	20-41	675	1050	830
	700	1346	955	875	815	60	24-48	850	1150	830

Size Main Dimensions

4.0MPa	DN	L	D	D1	D	D6	b	n-φd	H0	H1	H2
RF Q47H 40 40P 40R	32	180	135	100	78	66	18	4-18	30	85	160
	40	190	145	110	85	76	18	4-18	32	95	230
	50	216	160	125	100	88	20	4-18	43	107	230
	65	241	180	145	120	110	22	8-18	70	142	400
	80	283	195	160	135	121	22	8-18	110	152	400
	100	305	230	190	160	150	24	8-23	150	178	500
	125	381	270	220	188	176	28	8-25	200	252	500
	150	403	300	250	218	204	30	8-25	230	278	600
	200	502	375	320	282	260	38	12-30	260	395	600
	250	568	445	385	345	313	42	12-34	283	480	800
	300	648	510	450	408	364	46	16-34	380	585	800
	350	762	570	510	465	422	52	16-34	425	625	800
	400	838	655	585	535	474	58	16-41	492	720	800
	500	991	755	670	612	576	62	20-48	555	840	830
	600	1143	890	795	730	678	62	20-54	675	1050	830
	700	1346	995	900	835	768	68	24-54	850	1150	83
