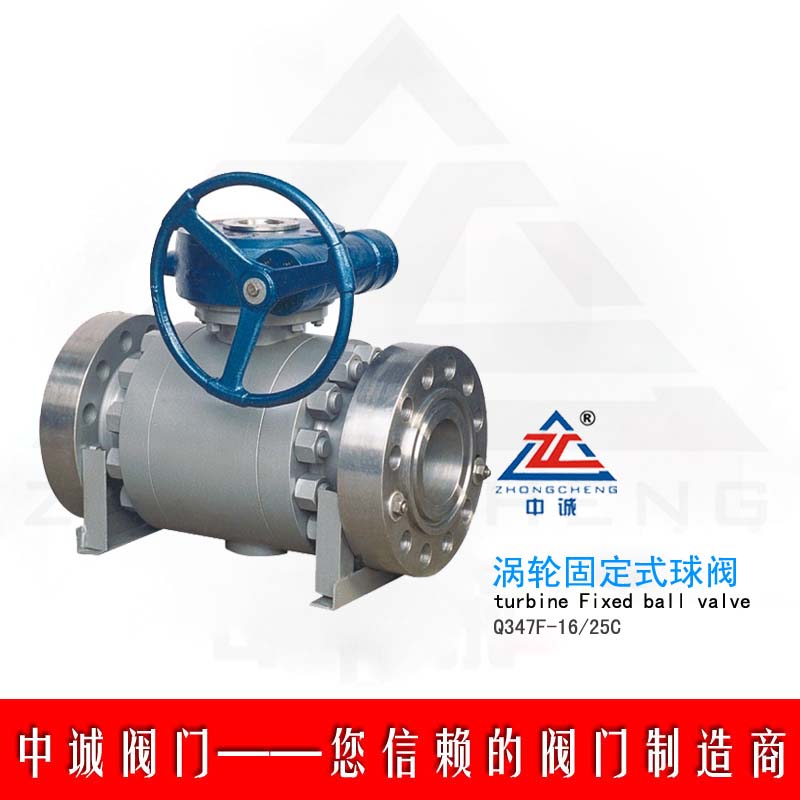

Forged steel fixed ball valve
Q347F fixed ball valve product introduction:
The design of the main features are: full gauge/reducing;90 degrees to locate and lock structure;Special form of Y head of the handle;Fire protection and anti-static design, a pair of opposite butterfly spring;Blow out proof stem;Stem in the middle of dual sealing structure;Bolts, thread gasket seal cover.Valves and other mechanical equipment installation, have an attitude problem installation, the valve installation right attitude should be the internal structure in line with the flow of the medium installation conform to the requirements of the valve structure of a specific attitude and operation requirements.In addition, the correct attitude with uniform, the feeling of the beauty is generous, it is a modern art form, the organic combination of both technical and artistic quality.
Q347F forged steel structure and USES fixed ball valve products
This valve has two kinds of design form.One is two type structure, the threaded connection, and with PTFE gasket seal;Another kind is three panel structure, central bolt bolted.According to the selected seat with washer/filler material is different, adapt to different working temperature and medium...The average valve.Three separate connection forged steel fixed ball valve, valve in two seat place along with the body channel axis vertical section is divided into three parts, the whole valve along the stem axis left and right sides is symmetrical, it is mainly used for cutting, distribution, and changes in the pipeline flow direction of medium.Its big pivot structure guarantee at the center of the sphere of accurate under high pressure, to ensure the valve good operating performance;Standard seat is spring structure, will seat into the ball, to ensure the sealing performance of good import and export;Using the built-in discharge valve, the valve body lumen to emissions;Pivot structure of blow-out proof protection, effectively prevent leakage;Low friction coefficient of the bearing, makes the minimum torque, facilitate the valve opening and closing;Effective valve stem and valve body contact, anti-static grounding device performance is superior, etc.With excellent performance, high reliability, wide range of USES, the price is reasonable, etc.Suitable for: chemical, oil, natural gas, metallurgy, and other industries and medium containing hydrogen sulfide, impurities, serious corrosion of gas pipeline.
Q347F forged steel fixed ball valve application scope
API forged steel fixed ball valve is mainly suitable for chemical industry, metallurgy, petroleum, pharmaceutical, etc all kinds of high pressure medium in the pipeline, applicable temperature: 196 ~ 450 ℃.Drive mode: manual, pneumatic, electric, hydraulic, turbine, etc.;Nominal diameter: 1/2 ~ 12;Nominal pressure: 150 lb to 1500 lb.Applicable medium: water, gas, oil, natural gas and acid and alkali corrosive medium.
